Full-Width Hardened Rubber Container Loading Ramp Set (2,200 mm)

Description

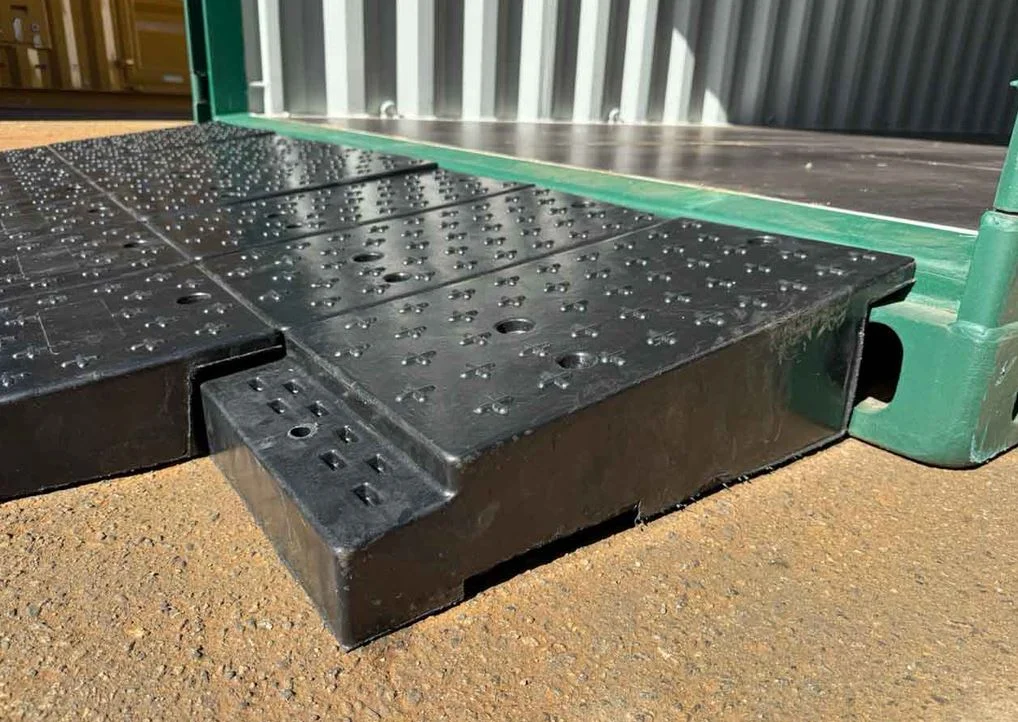

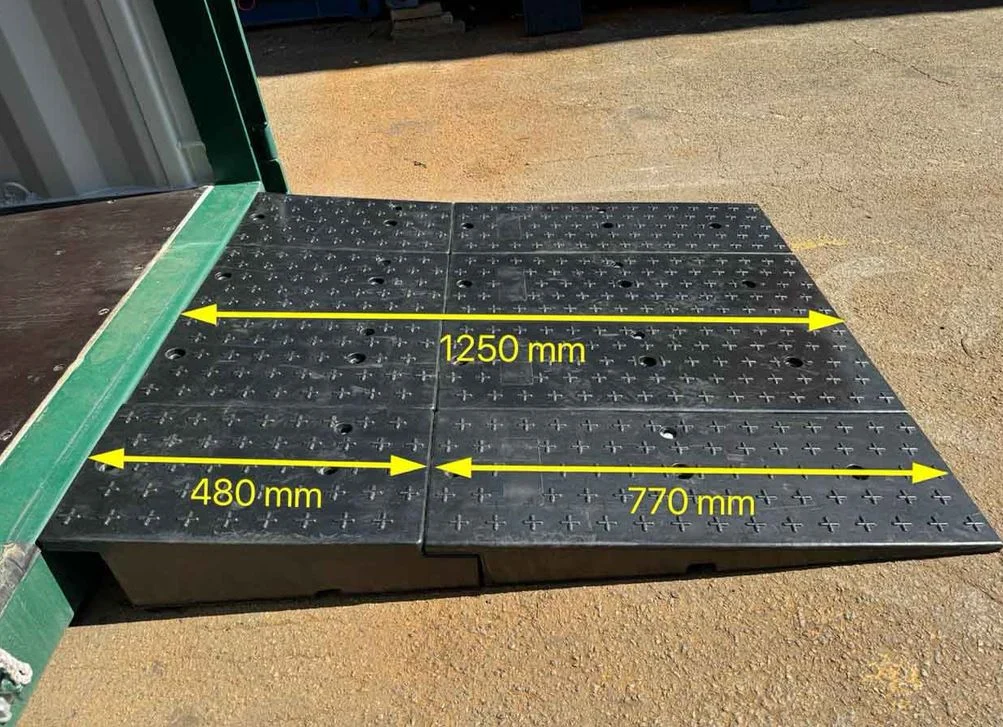

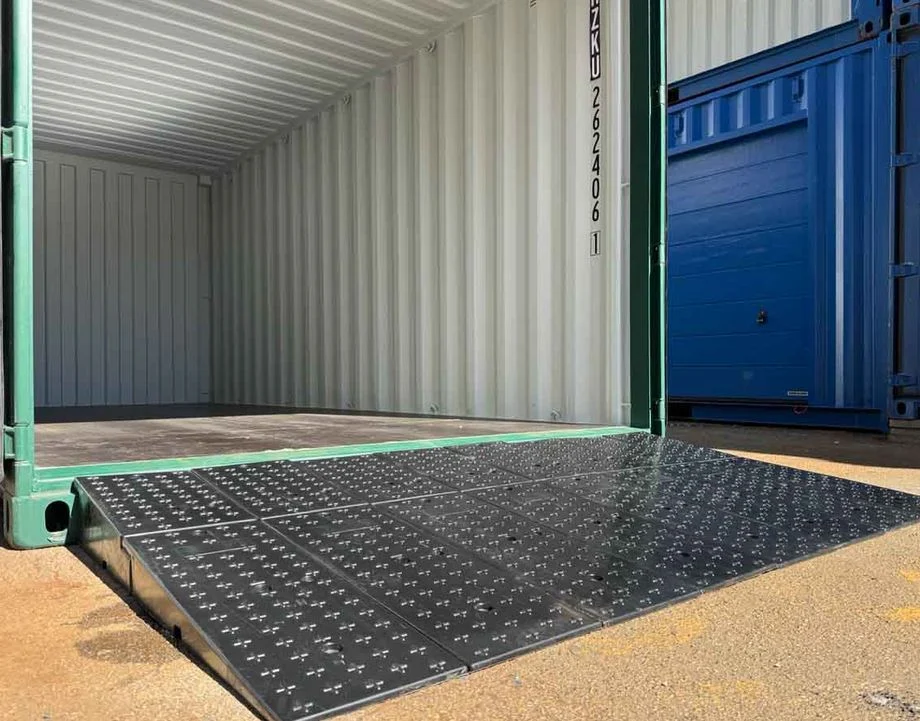

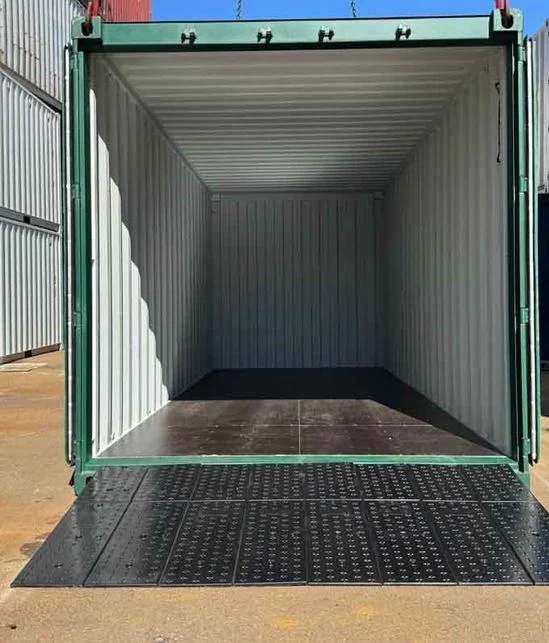

A modular hardened rubber ramp that builds out to the full 2,200 mm (about 87 in) width of a container door, or splits into separate wheel-track ramps. Use it to take forklifts, pallet jacks and wheeled machines over the container door sill.

Specifications

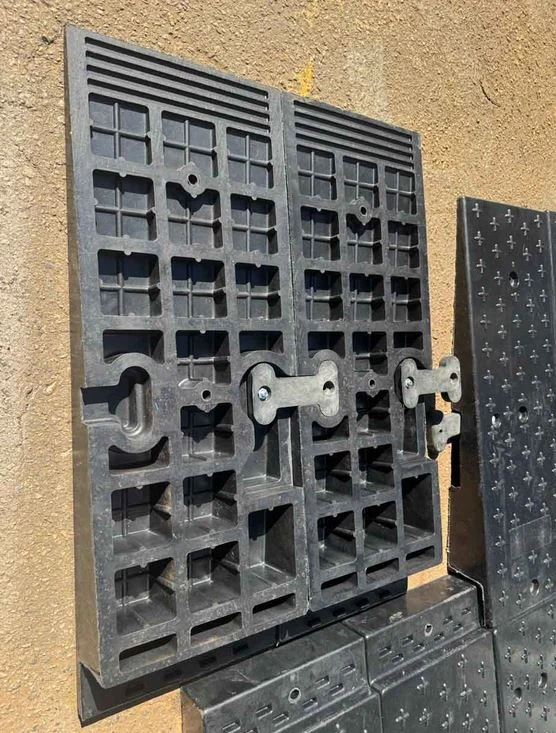

• One set: 16 parts that make 8 ramp sections

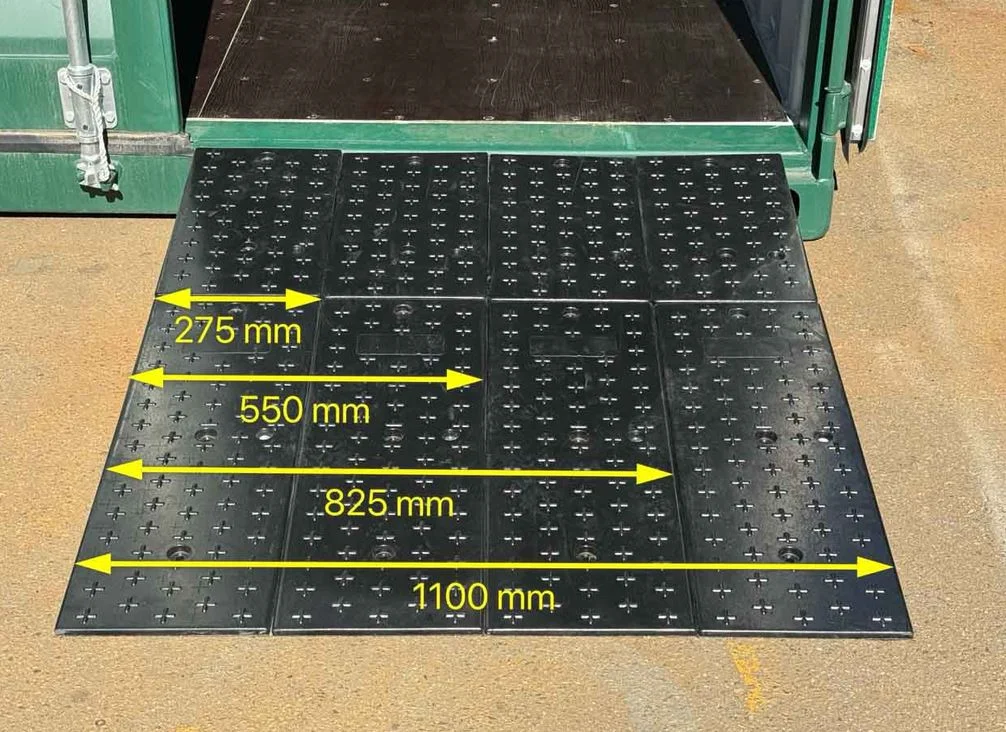

• Assembles to full container width (2,200 mm) or as single ramps
• Load capacity: 20 tons per set
• Each ramp section: two parts, 14.5 kg and 9.7 kg (24.2 kg / 53 lb together)
• Set weight: 193.6 kg (427 lb)

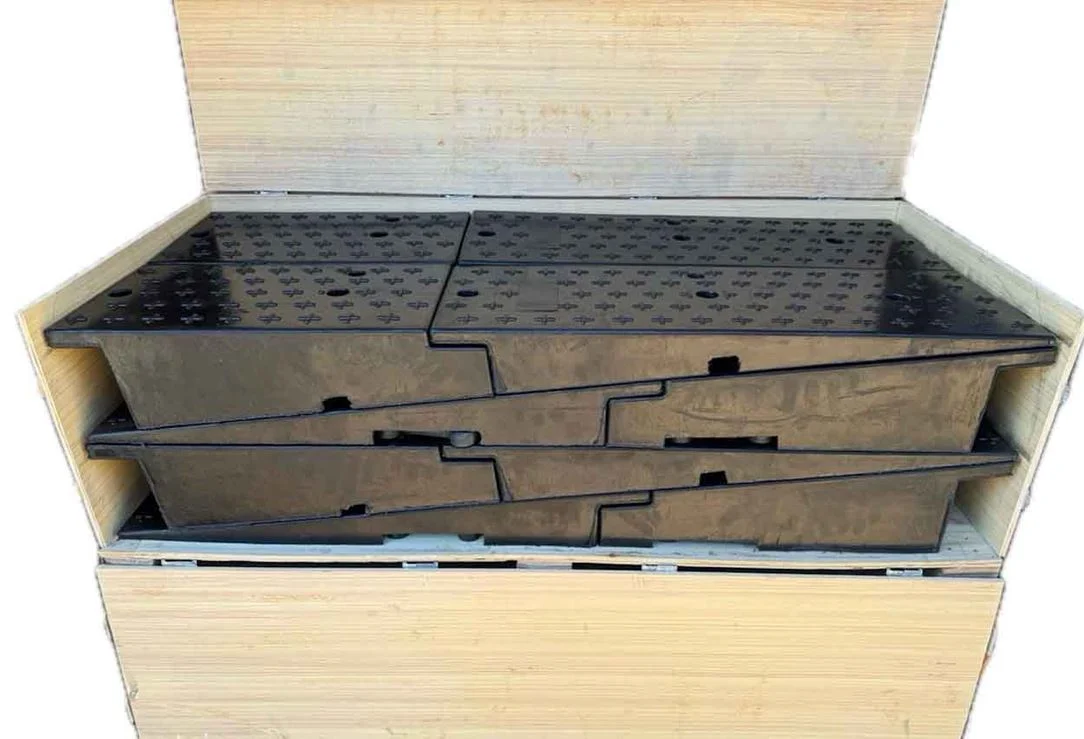

• Ships on a pallet: about 1,280 x 600 x 470 mm, 207 kg (456 lb)

Fit and shipping

Check the sizes and ratings above against your container or trailer before ordering, and call (321) 359-5775 if you are unsure about fit. Parts ship free anywhere in the 50 states.
